CUAV C-RTK 9Ps Positioning GNSS Module for Drones

$1,129.00

This is a combo set of CUAV C-RTK 9Ps Positioning GNSS Module (RTK/GPS), including the sky end unit and base end unit. The sky end and base end can be purchased separately.

In the realm of UAV technology, the importance of precise positioning cannot be overstated. The Global Navigation Satellite System (GNSS) plays a pivotal role in this, providing drones with crucial data such as geographic location, time, and speed. A typical GNSS module can receive signals from four major global satellite navigation systems: GPS, GLONASS, GALILEO, and China’s Beidou Satellite Navigation System (BDS).

Introducing the CUAV C-RTK 9Ps GNSS Module

The CUAV C-RTK 9Ps GNSS Module stands out in the market, offering more than just satellite navigation. Some GNSS modules, including the CUAV C-RTK 9Ps, integrate additional features such as flight control status lights, safety switches, and buzzers, enhancing the UAV’s integration level.

But what truly sets the CUAV C-RTK 9Ps apart is its RTK and PPK capabilities. Unlike standard GNSS modules, RTK (Real-Time Kinematic) and PPK (Post-Processed Kinematic) offer higher positioning accuracy, achieving precision down to the centimeter level. This makes the CUAV C-RTK 9Ps an ideal choice for applications that demand real-time high-precision navigation, such as UAV aerial performance, agricultural applications, and high-precision takeoffs and landings.

Category: Tags: , , , , , ,

Description

This is a combo set of CUAV C-RTK 9Ps Positioning GNSS Module (RTK/GPS), including the sky end unit and base end unit. The sky end and base end can be purchased separately.

In the realm of UAV technology, the importance of precise positioning cannot be overstated. The Global Navigation Satellite System (GNSS) plays a pivotal role in this, providing drones with crucial data such as geographic location, time, and speed. A typical GNSS module can receive signals from four major global satellite navigation systems: GPS, GLONASS, GALILEO, and China’s Beidou Satellite Navigation System (BDS).

Introducing the CUAV C-RTK 9Ps GNSS Module

The CUAV C-RTK 9Ps GNSS Module stands out in the market, offering more than just satellite navigation. Some GNSS modules, including the CUAV C-RTK 9Ps, integrate additional features such as flight control status lights, safety switches, and buzzers, enhancing the UAV’s integration level.

But what truly sets the CUAV C-RTK 9Ps apart is its RTK and PPK capabilities. Unlike standard GNSS modules, RTK (Real-Time Kinematic) and PPK (Post-Processed Kinematic) offer higher positioning accuracy, achieving precision down to the centimeter level. This makes the CUAV C-RTK 9Ps an ideal choice for applications that demand real-time high-precision navigation, such as UAV aerial performance, agricultural applications, and high-precision takeoffs and landings.

Key Features of the CUAV C-RTK 9Ps:

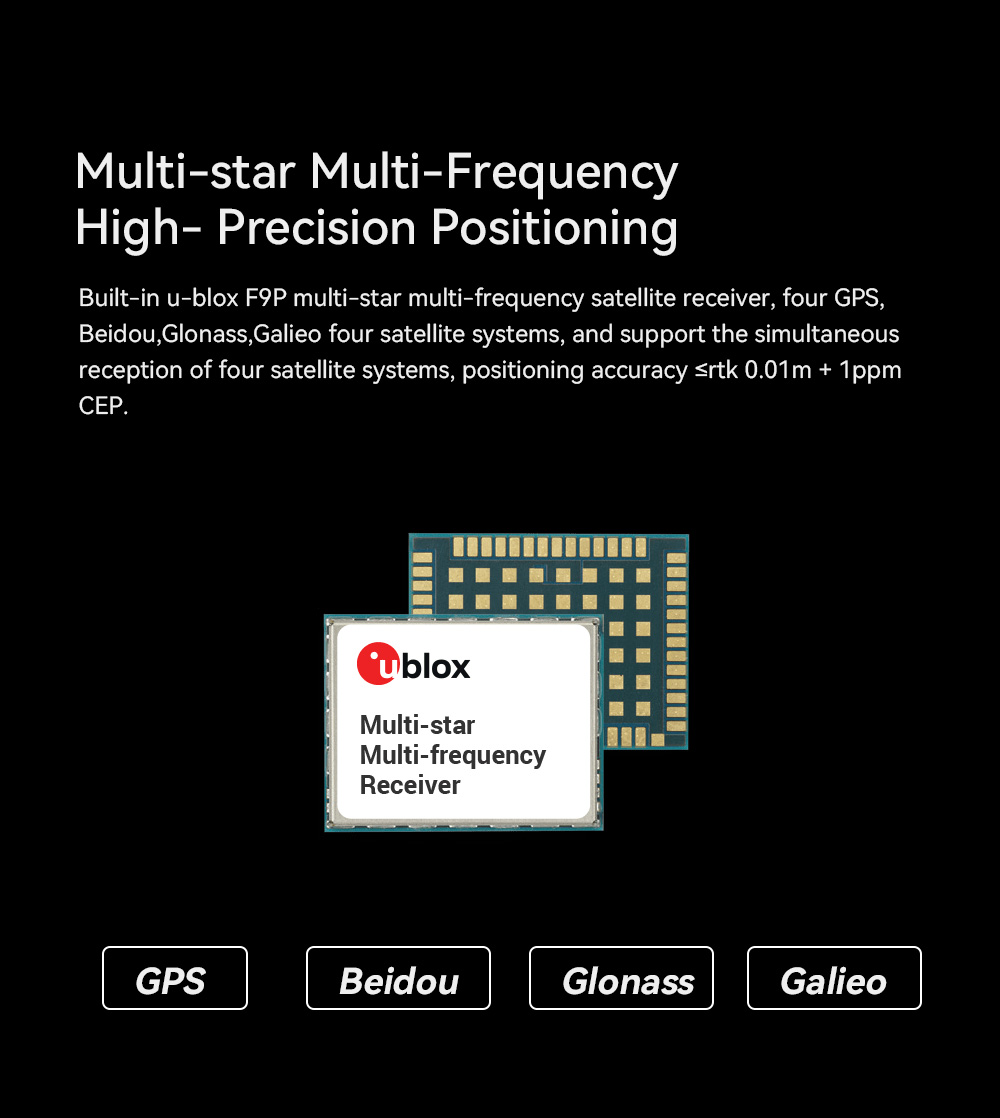

  • Multi-star, multi-frequency receiver with built-in u-blox F9P.
  • Positioning accuracy of less than 0.01m +1ppm CEP.

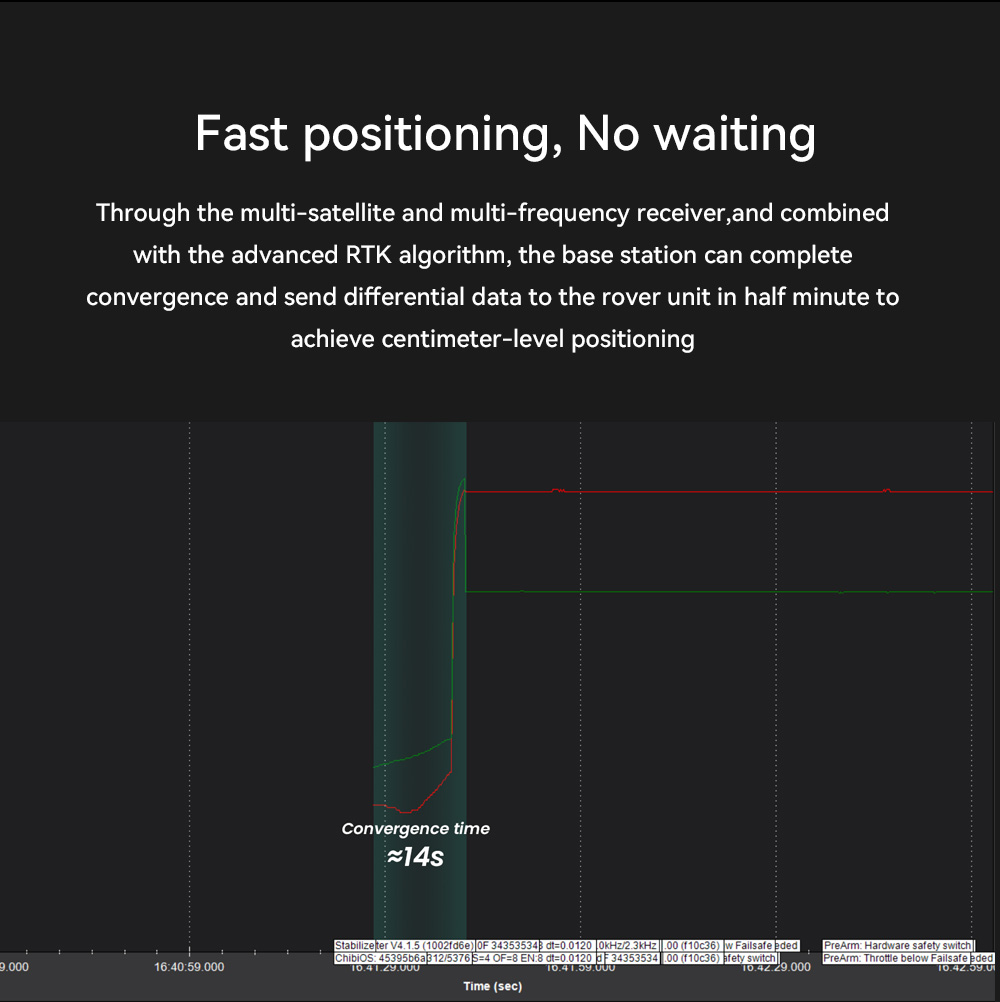

  • Ultra-fast UAV positioning with convergence achieved in under 30 seconds.
  • Dual RTK capability for yaw, allowing adaptation to complex magnetic field environments.
  • Fast switch between sky and rover units, thanks to a unified design and firmware.

Purchase with Confidence

For those interested in integrating the CUAV C-RTK 9Ps GNSS Module into their UAV systems, Mugin UAV offers this product, ensuring quality, authenticity, and post-purchase support.
