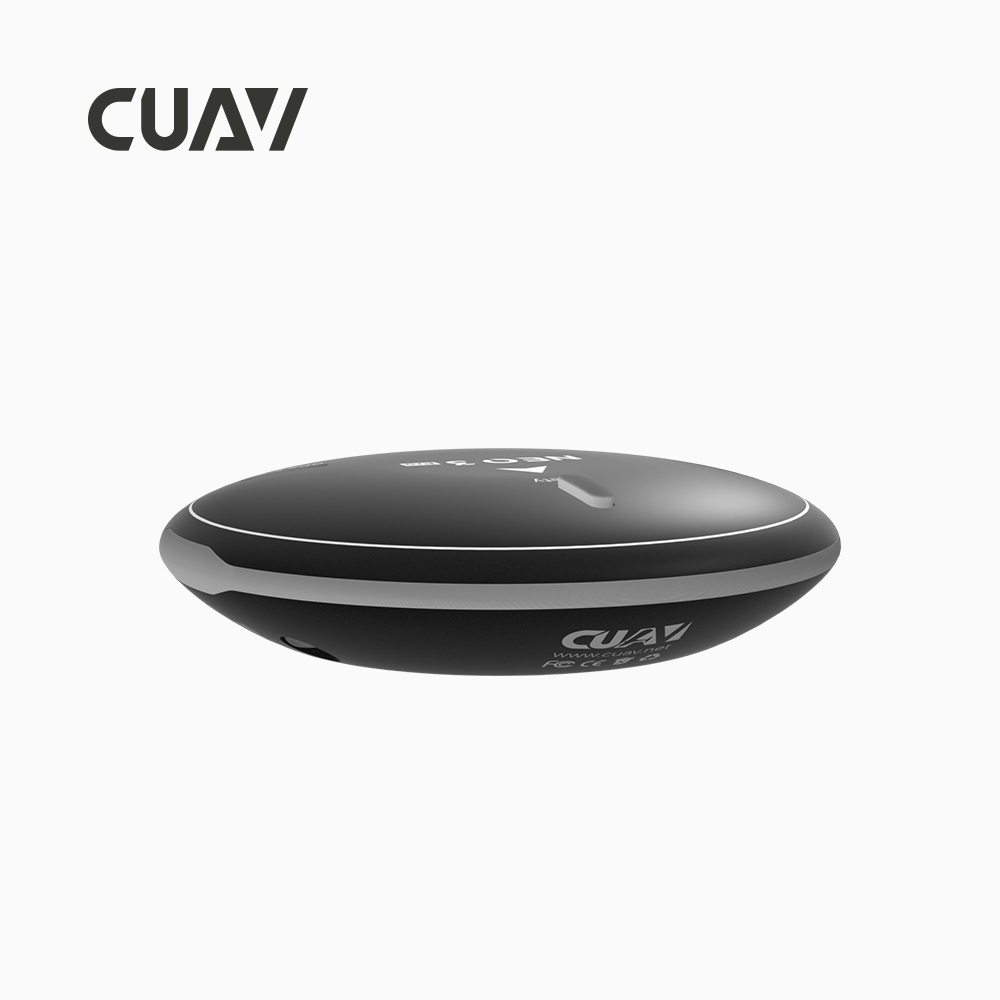

CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS
$198.00
Elevate your drone’s navigation capabilities with the CUAV NEO 3 Pro Precision GPS Module. This advanced module is an upgrade from the NEO V2, integrating the latest Ublox NEO M9N GNSS module. It offers simultaneous support for multiple global navigation satellite systems, including Beidou, Galileo, GLONASS, and GPS.
Key Features:
- High-Precision GNSS: Utilizes the Ublox NEO M9N module, ensuring accurate and reliable positioning.
- Multi-Satellite Support: Seamlessly integrates with Beidou, Galileo, GLONASS, and GPS systems.
- Enhanced Positioning: Achieves a horizontal positioning accuracy of up to 0.7M.
- Integrated Safety Features: Comes with a built-in safety switch, audible buzzer, and RGB indicator light.
- Industrial-Grade Components: Features an industrial-grade electronic compass, barometer, and CAN BUS support.
Technical Details:
- Supported Flight Controls: Compatible with Ardupilot and PX4 (PX4 adaptation in progress).
- EMI/RFI Protection: Equipped with anti-electromagnetic and radio frequency interference mechanisms.
- GNSS Augmentation Systems: Supports SBAS, WAAS, EGNOS, MSAS, QZSS, and RTCM3.3.
- Sensitivity: Offers high sensitivity for tracking, reacquisition, cold starts, and hot starts.
- Concurrent GNSS: Supports up to 4 GNSS systems simultaneously.
- Physical Safety Switch: Ensures safe operations.
- Dimensions: 60x60x16mm
- Input Voltage: 5V
- Weight: 33g
Description

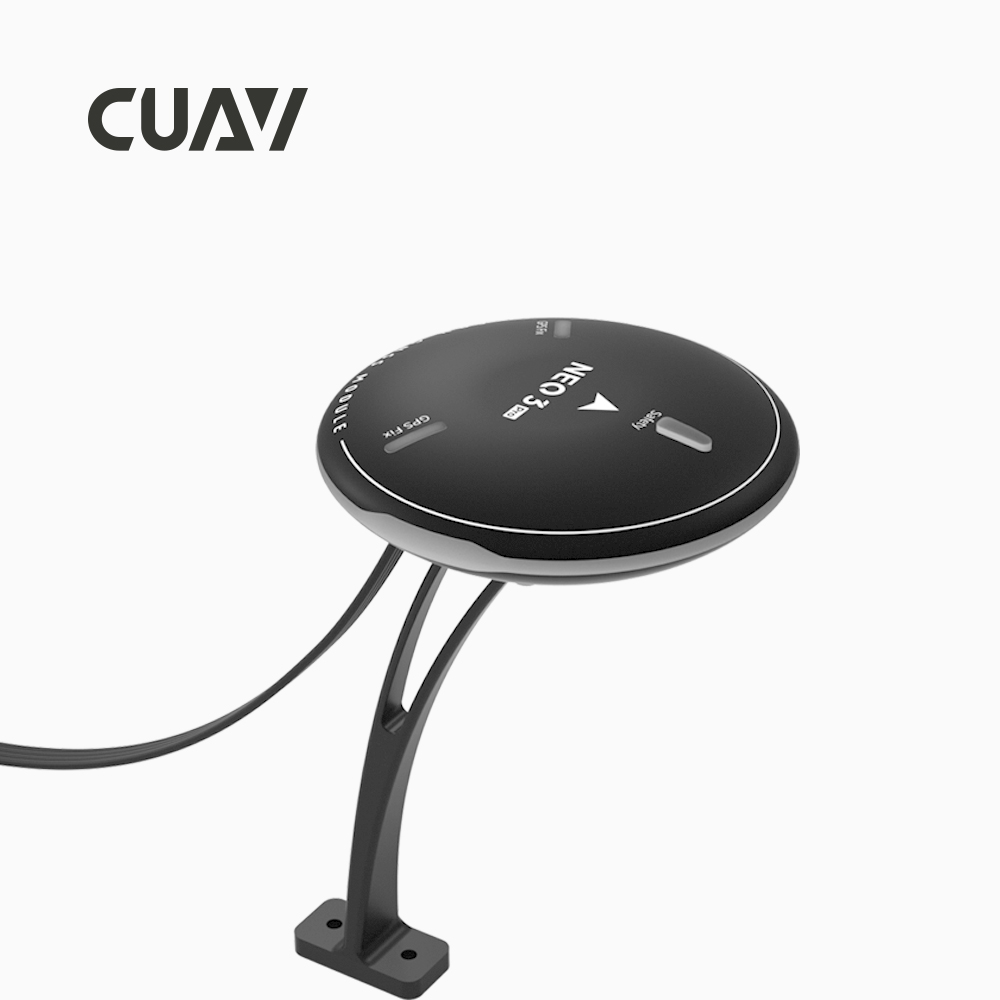

CUAV NEO 3 Pro Precision GPS Module with Stand
Elevate your drone’s navigation capabilities with the CUAV NEO 3 Pro Precision GPS Module. This advanced module is an upgrade from the NEO V2, integrating the latest Ublox NEO M9N GNSS module. It offers simultaneous support for multiple global navigation satellite systems, including Beidou, Galileo, GLONASS, and GPS.
Key Features:
- High-Precision GNSS: Utilizes the Ublox NEO M9N module, ensuring accurate and reliable positioning.
- Multi-Satellite Support: Seamlessly integrates with Beidou, Galileo, GLONASS, and GPS systems.
- Enhanced Positioning: Achieves a horizontal positioning accuracy of up to 0.7M.
- Integrated Safety Features: Comes with a built-in safety switch, audible buzzer, and RGB indicator light.
- Industrial-Grade Components: Features an industrial-grade electronic compass, barometer, and CAN BUS support.
Technical Details:
- Supported Flight Controls: Compatible with Ardupilot and PX4 (PX4 adaptation in progress).
- EMI/RFI Protection: Equipped with anti-electromagnetic and radio frequency interference mechanisms.
- GNSS Augmentation Systems: Supports SBAS, WAAS, EGNOS, MSAS, QZSS, and RTCM3.3.
- Sensitivity: Offers high sensitivity for tracking, reacquisition, cold starts, and hot starts.
- Concurrent GNSS: Supports up to 4 GNSS systems simultaneously.
- Physical Safety Switch: Ensures safe operations.
- Dimensions: 60x60x16mm
- Input Voltage: 5V
- Weight: 33g
Special Notes:
- The NEO 3 Pro supports RTCM3.3 injection but does not offer RTCM output. It can achieve pseudorange differential positioning but does not support RTK carrier phase differential. A base station with RTCM3.3 output support is required.
- The accuracy level of NEO 3 Pro varies based on the SBAS enhancement system’s status.
Package Contents:
- CUAV NEO 3 Pro Precision GPS Module
- CAN Connection Cable
- GPS Stand
