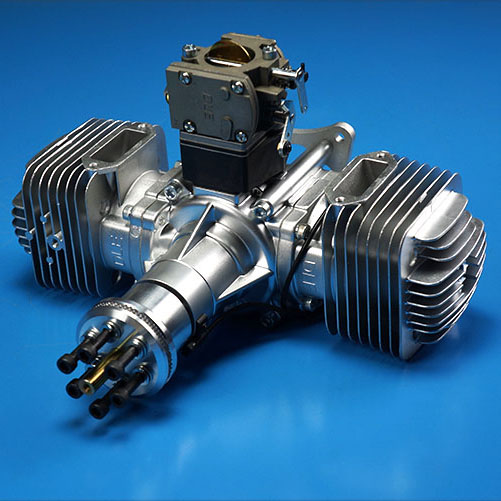

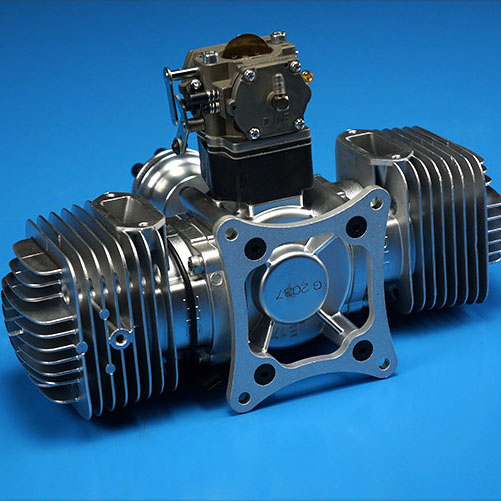

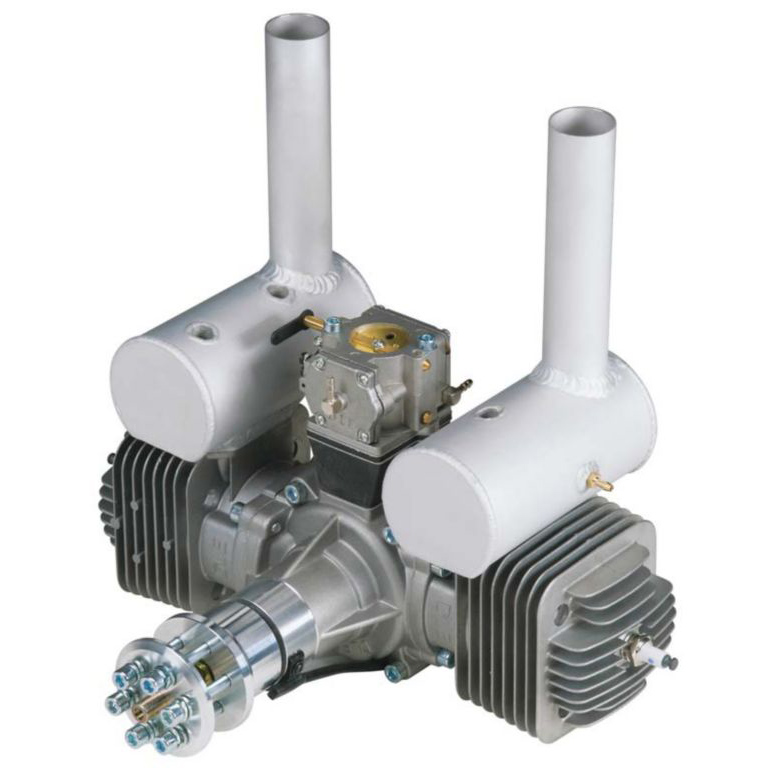

DLE-170 170cc Twin Gas Engine with Electronic Ignition and Mufflers

Features: Three crank bearings, simple design for lighter weight Double V-type reed valves, bottom induction Automatic electronic ignition Customized carburetor Special aluminum alloy crankcase Advanced CNC machining High quality sealed bearings Horizontally opposed twin cylinders for low vibration High power-to-weight ratio Includes mufflers Includes mount

INQUIRE NOW SEE OPTIONS

Categories:

UAV Engines

Specifications

Features:

Three crank bearings, simple design for lighter weight
Double V-type reed valves, bottom induction
Automatic electronic ignition
Customized carburetor
Special aluminum alloy crankcase
Advanced CNC machining
High quality sealed bearings
Horizontally opposed twin cylinders for low vibration
High power-to-weight ratio
Includes mufflers
Includes mount

Specifications:

Stock Number: DLEG0170
Displacement: 170 cc (10.37 cu in)
Bore: 2.05 in (52 mm)
Stroke: 1.57 in (40 mm)
Weight: 9.06 lbs (4.11 kg)
RPM Range: 1,100-9,000
Output: 17.5 hp @ 9,000 rpm
Requires: Gasoline, oil, ignition battery & propeller

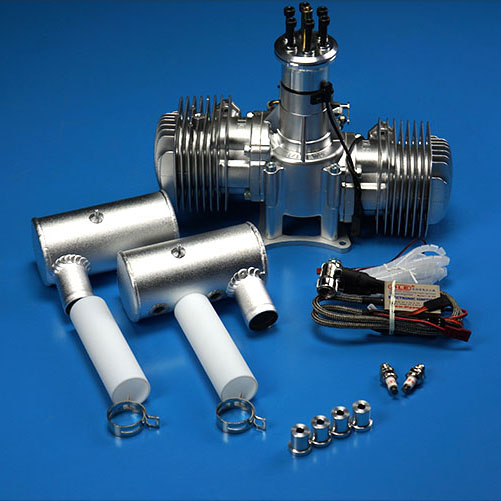

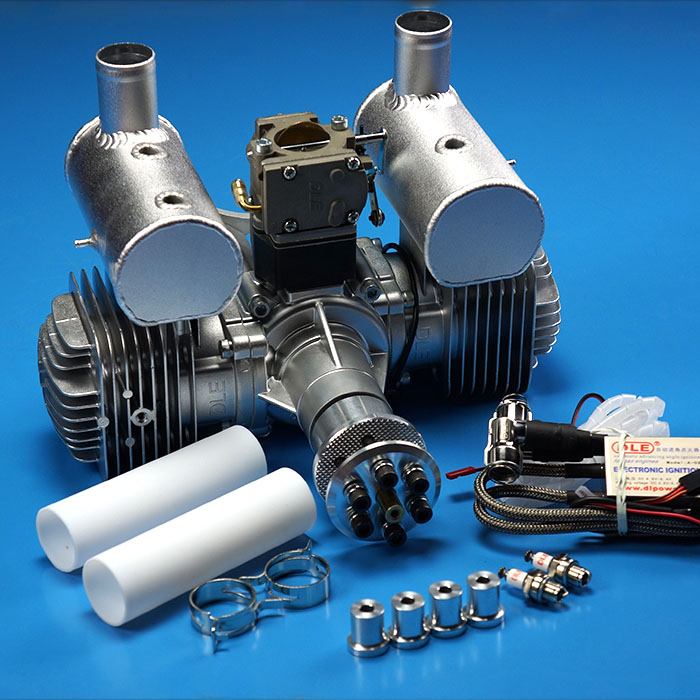

Includes: electronic ignition, mufflers, mount, spark plugs, gaskets, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 30 x 12 & 32 x 10

Technical Data:

Compression Ratio: 9.5:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (individual): Engine: 7.83 lbs (3,550 g); Exhaust (2): 7.05 oz (200 g); Ignition: 5.64 oz (160g）
