EV460 Flight & Propulsion System

$9,399.00

Mugin EV460 is a new full electric VTOL with a wingspan of 4600mm. The airframe is made of full carbon fiber which is lighter and more durable than other airframes that made of fiberglass or composite materials.

The same to EV350, this new VTOL features the quick-detach design which is easy to assemble and disassemble. It also features in the aerodynamic design of landing gear. The airframe comes with only 3 landing feet, save the space and weight, but still very stable while taking off or landing.

For your easier build of EV460, we have prepared a recommended flight & propulsion system. Before releasing, we have tested them to make sure all parts are matching well with each other. As per our flight tests, with the same setup, it is able to fly 2 hours with 8kg payload. Its maximum flight time is over 3 hours (zero payload).

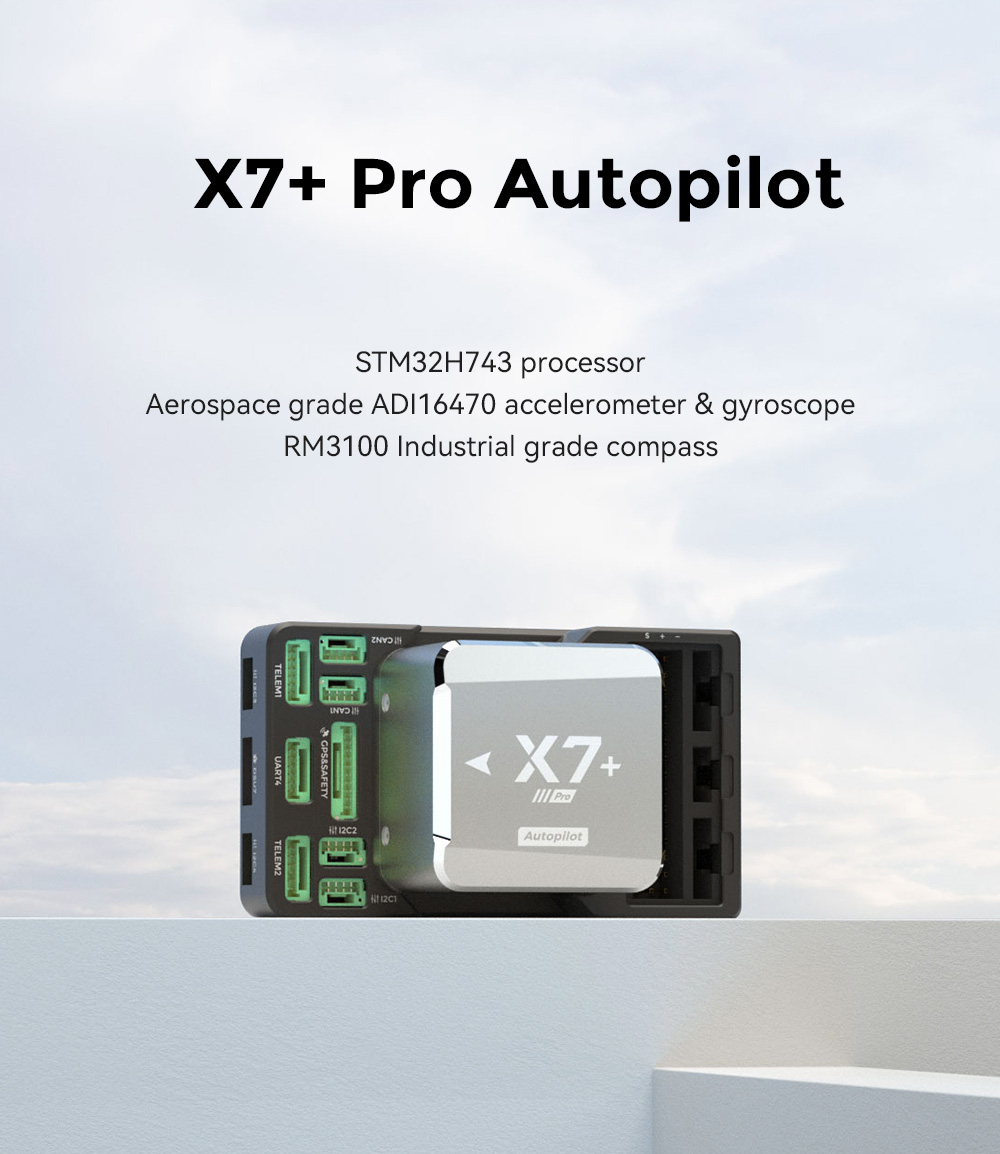

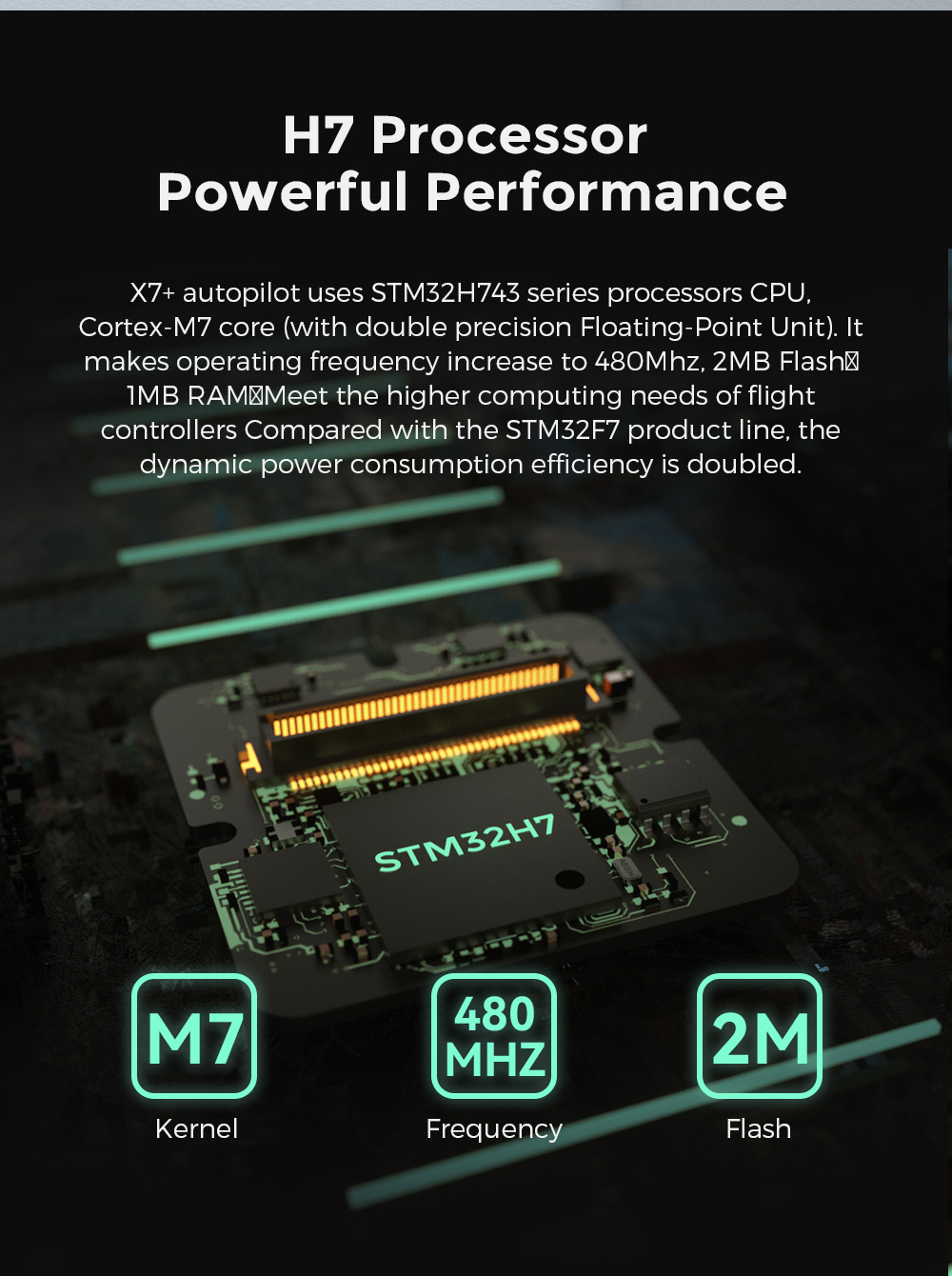

We are using the reliable CUAV X7+ Pro autopilot as the flight system. Plus the CUAV C-RTK 9Ps Positioning GNSS module, the Mugin EV460 VTOL are ideal choices for the applications that require high-precision takeoff, landing and real-time high-precision navigation.

Category: Tags: , , , , , , , ,

Description

Mugin EV460 is a new full electric VTOL with a wingspan of 4600mm. The airframe is made of full carbon fiber which is lighter and more durable than other airframes that made of fiberglass or composite materials.

The same to EV350, this new VTOL features the quick-detach design which is easy to assemble and disassemble. It also features in the aerodynamic design of landing gear. The airframe comes with only 3 landing feet, save the space and weight, but still very stable while taking off or landing.

For your easier build of EV460, we have prepared a recommended flight & propulsion system. Before releasing, we have tested them to make sure all parts are matching well with each other. As per our flight tests, with the same setup, it is able to fly 2 hours with 8kg payload. Its maximum flight time is over 3 hours (zero payload).

We are using the reliable CUAV X7+ Pro autopilot as the flight system. Plus the CUAV C-RTK 9Ps Positioning GNSS module, the Mugin EV460 VTOL are ideal choices for the applications that require high-precision takeoff, landing and real-time high-precision navigation.

This flight & propulsion system includes:

CUAV X7+ Pro autopilot x 1
CUAV 9Ps RTK  (Ground unit) x 2
Eaglepower GA8025 175KV Motor x 1
T-motor Flame 180A ESC x 1
JXF 24″*10″ Wooden Propeller x 1
T-motor V807 170KV x 4
T-motor Flame 180A ESC x 4
T-motor 28″ Propeller x 4
Savox SC-1256TG Servo x 4
Savox SV-1250MG Servo x 2
Savox SC-1256TG Servo x 2
Long UAV Pitot Tube x 1
UAV Navigation Lights x 1 set
Build Kit x 1

* The parts listed might be changed a bit based on the stock availability, but will be replaced with the similar specifications and same performance.

Batteries: We recommend to use 2x 12s 30000mAh batteries. Two batteries connected in parallel to use as 60000mAh. Due to the limit of international shipping, the batteries are not included, but if needed, we can get them for you and ship in a separate package. The cost will be additionally charged.

Build Service: The build service is available upon request. The cost of build will be additionally charged.

Tuning & Flight Test: The PID parameters are available upon request after purchasing, but you’ll need to tune and test the flight by yourselves.
