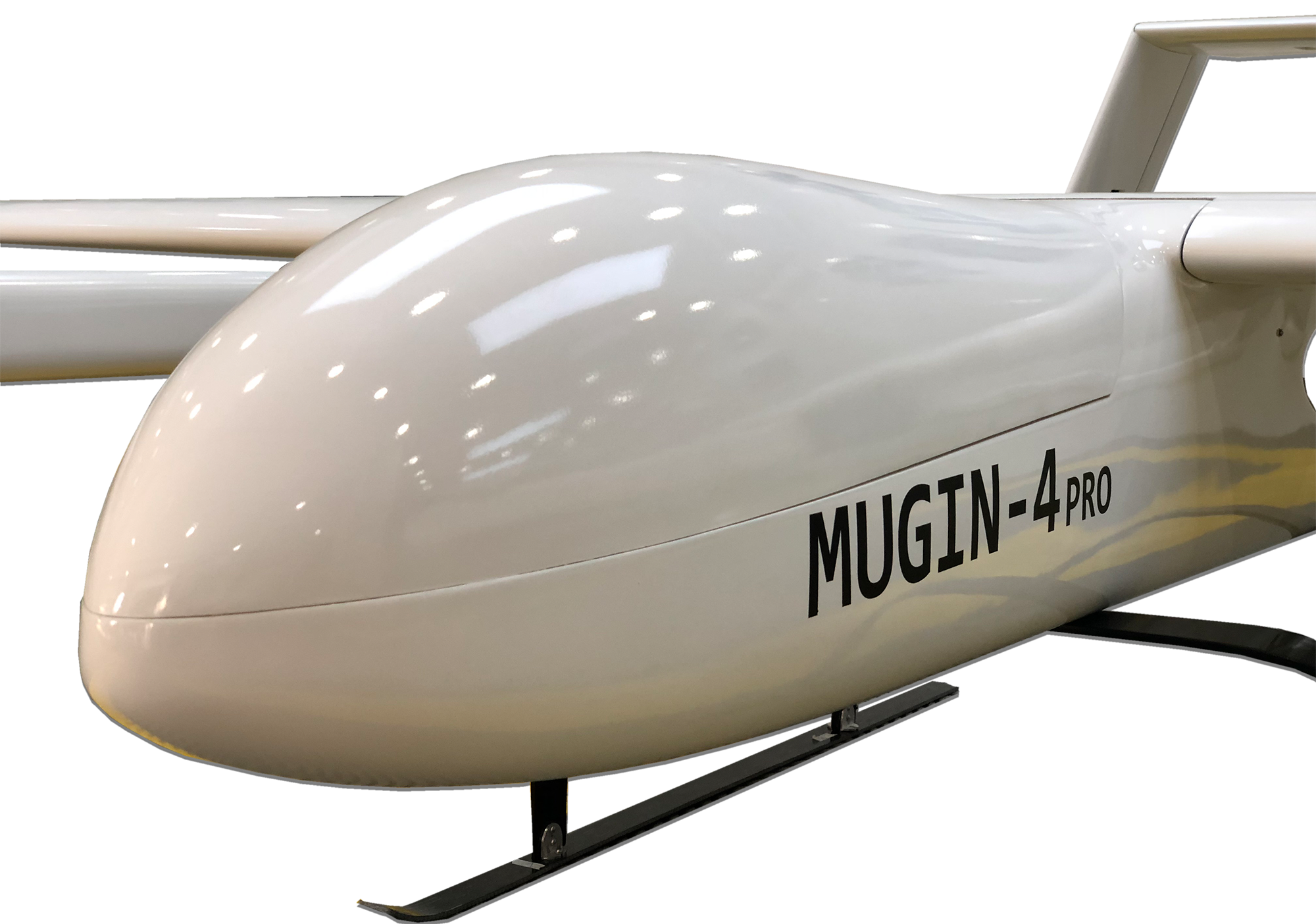

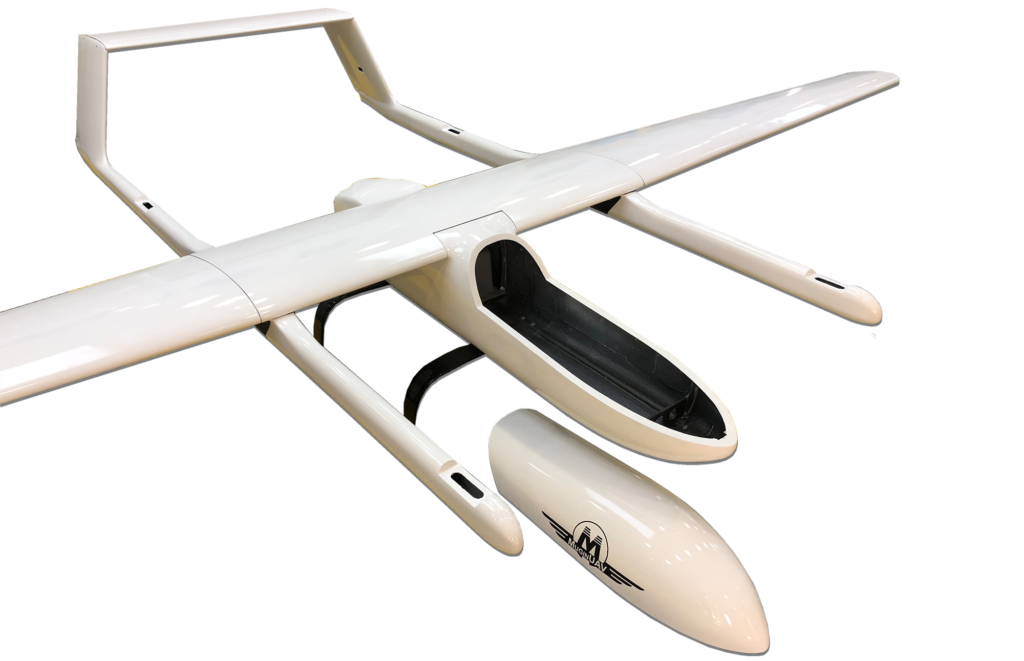

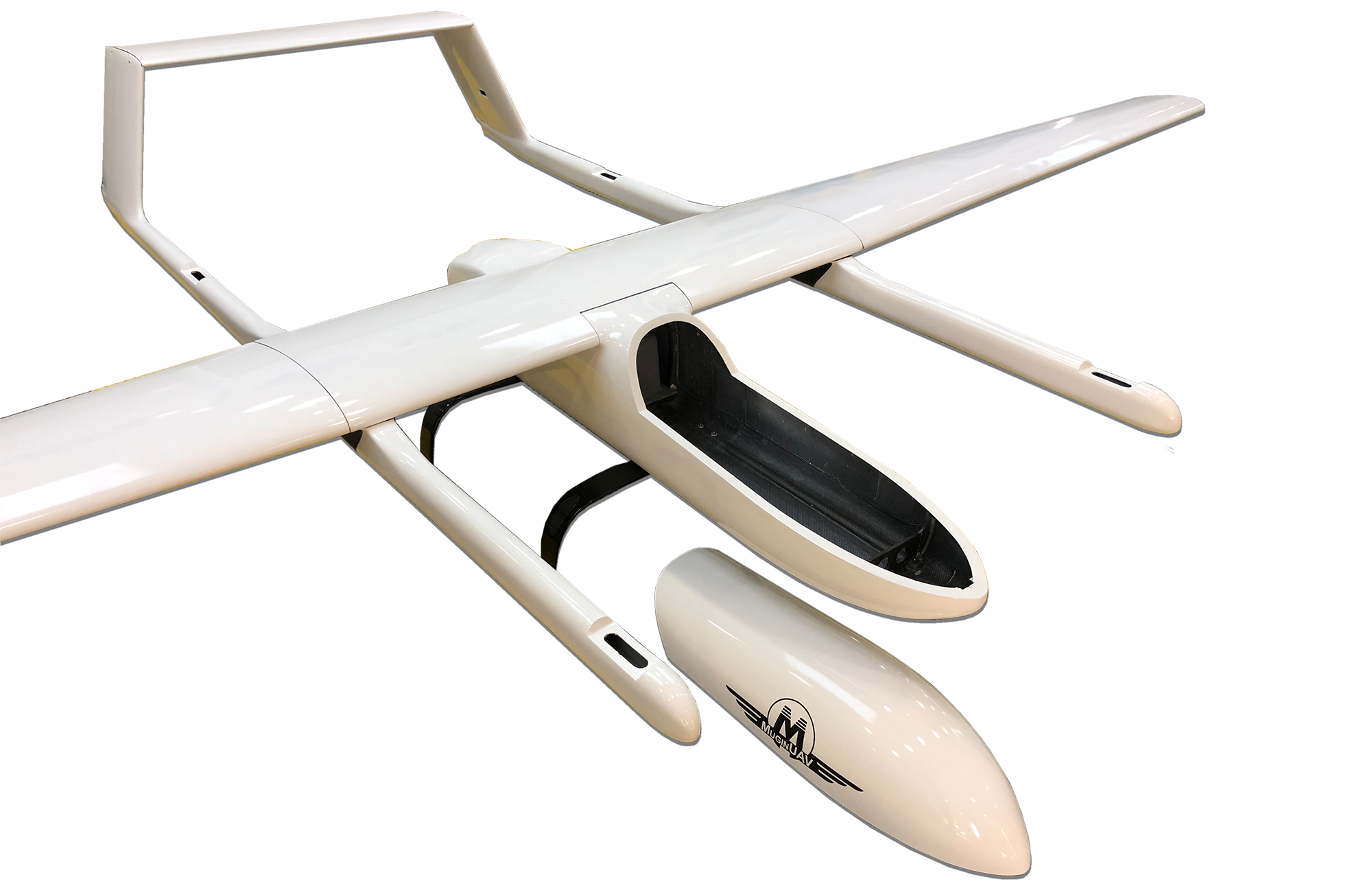

The Mugin 4720mm VTOL platform is a long endurance unmanned VTOL airframe designed for professional use. Using this airframe with your team of experienced engineers will allow your team to have the foundation they need for the most demanding of requirements.
Mugin 4720mm VTOL has a payload bay is designed to accommodate a wide array of different payloads and possess the ability to lift almost anything you may require.
Mugin 4720mm VTOL’s vertical take off and landing gives your crew the added advantage of not needing bulky launchers or lengthy runways. There is no need for those tricky parachute landings that are subject to mild forces of wind. Having the capability of VTOL allows the crew to do take off’s and landings with surgical precision.
For your easy build, we have also prepared a power package for this Mugin-4 Pro. Please check https://www.muginuav.com/product/power-package-for-mugin-3-and-mugin-4-vtol-uav/ for details.
With the recommended gasoline power setup, you’re able to fly the Mugin 4720 VTOL with a maximum flight time of 3 hours or even longer. And its maximum payload is around 8kg.
* Different from the pictures, this Mugin airframe does not come with landing skids any more so as to reduce the weight and wind resistance.
Recommended Power Package (Not Inlcuded)
https://www.muginuav.com/product/power-package-for-mugin-3-and-mugin-4-vtol-uav/
Dimensions
Wingspan: 4720mm
Length: 2450mm
Wing Area: 166dm2

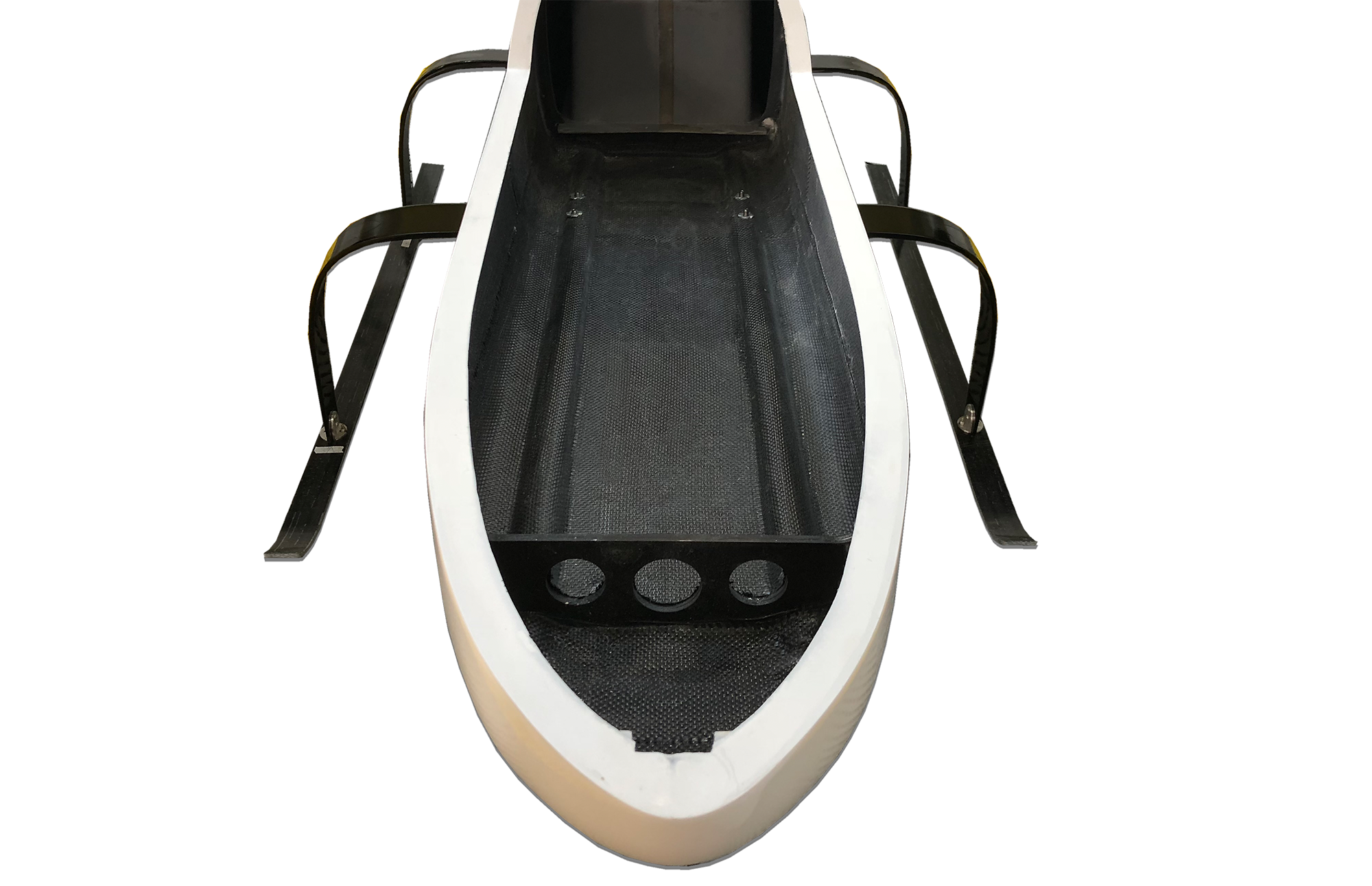

Payload Bay: 500mm x 250mm x 270mm
Weight and Payload
Empty Weight: 13.7kg
Empty Weight with ARF Package: 30.5kg
Maximum Take-off Weight: 42kg
Payload Capacity: 6 to 8kg
Flight Characteristics
Cruise Speed: 28m/s
Maximum Speed: 32m/s
Stall Speed: 24m/s
Maximum Flight Time: 3 hours
Range: Restricted to Flight Time
Packaging Information
Shipping Dimensions of Package: 190cm x 51cm x 50cm
Package Weight: Volumetric Weight of 97kg
