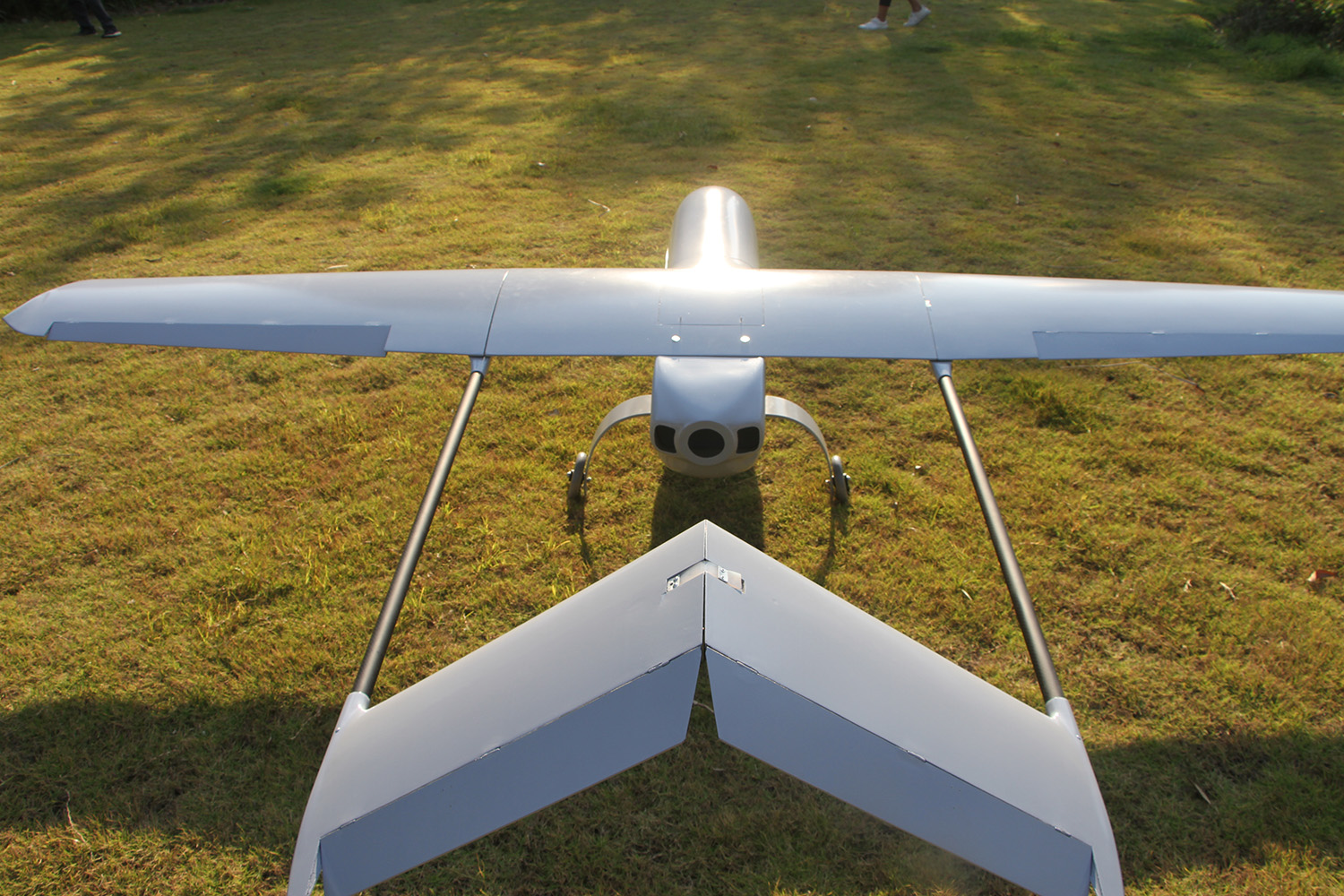

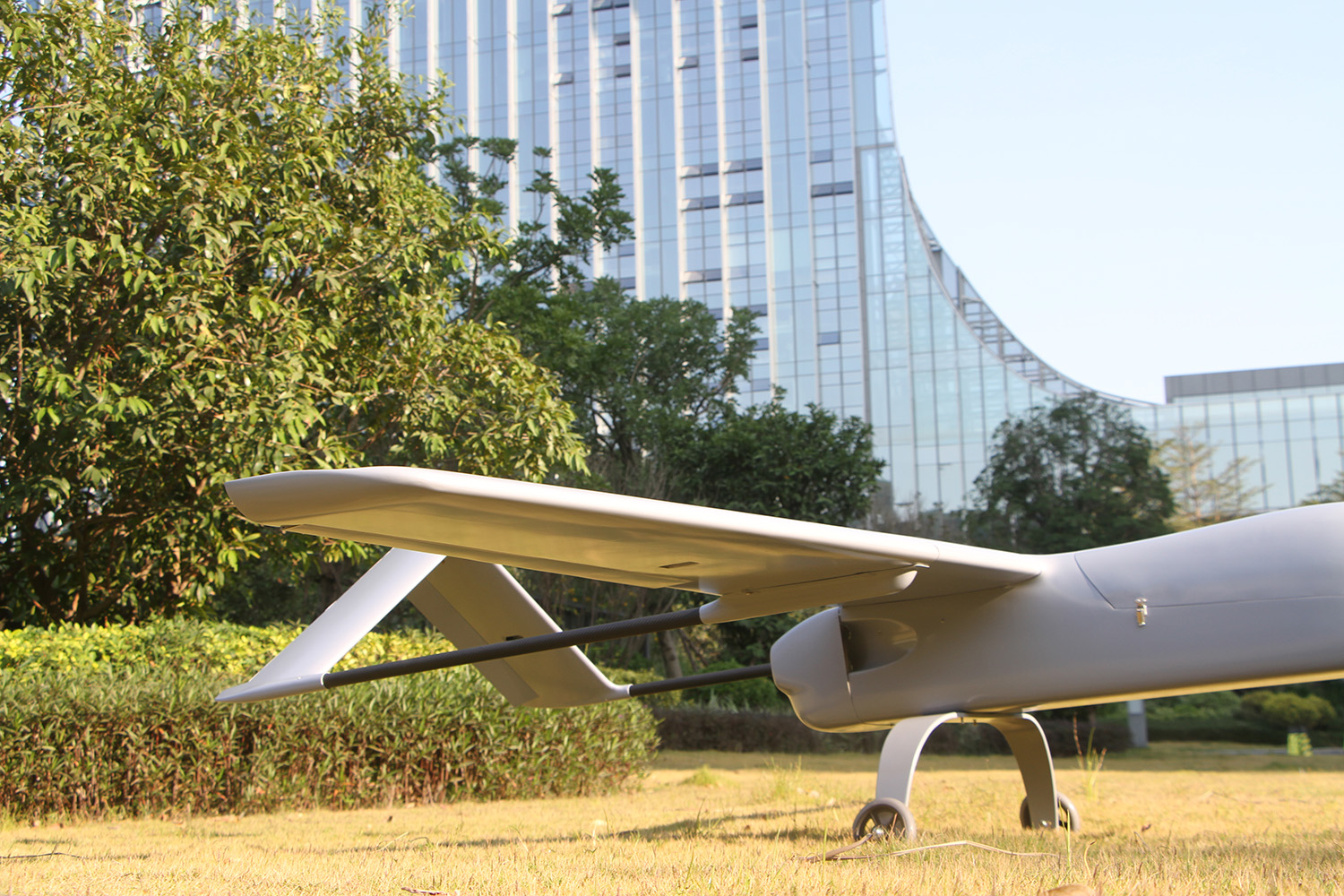

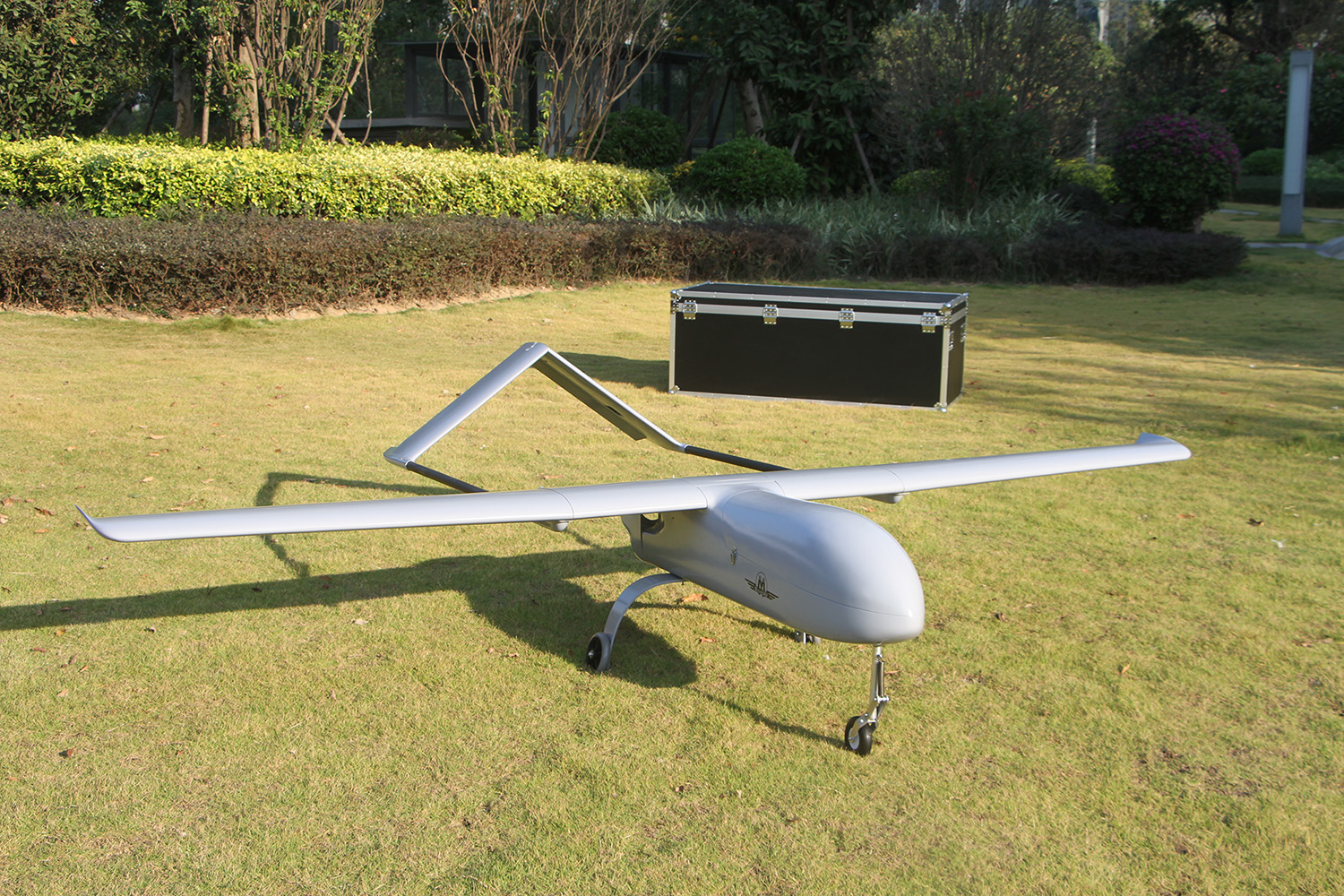

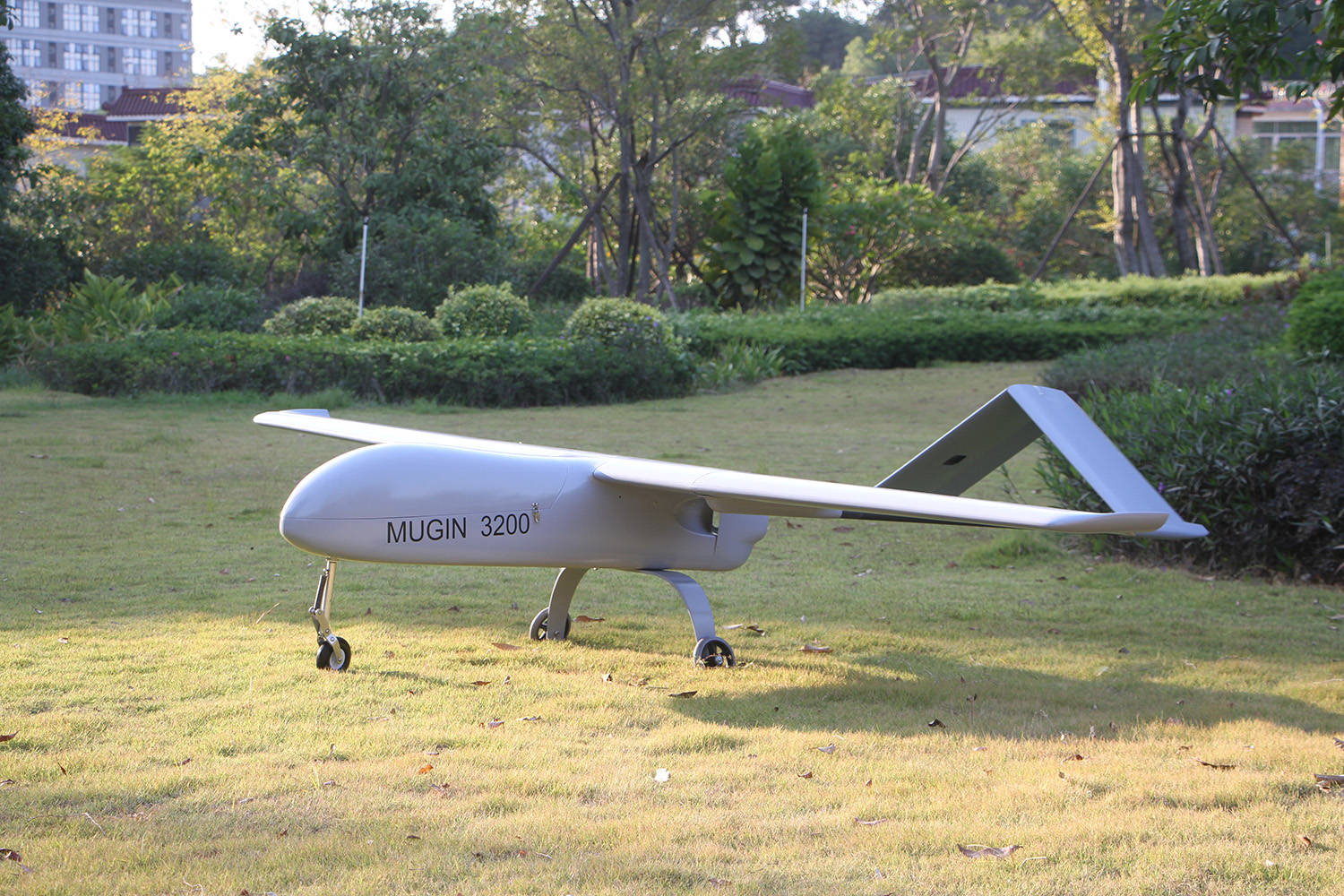

Mugin 3220 UAV V-Tail Platform Frame Kit is a versatile and customizable airframe designed for professional aerial applications. With a wingspan of 3220mm and a length of 2348mm, this UAV frame kit offers excellent aerodynamic performance. Made from a composite of wood and fiberglass, it has an empty weight of 12.45 kg and is engineered to accommodate a payload of up to 8kg.

Unlike many UAVs, this product comes as an empty frame kit, allowing users the flexibility to customize it with a 50-80cc engine and either a gasoline or electrical power package, both of which must be purchased separately. The frame kit is optimized for both short and long-endurance missions, capable of flying up to 3 hours on 6 liters of fuel.

Overall, the New Mugin 3M UAV V-Tail Platform Frame Kit offers a robust and customizable solution for a variety of professional aerial tasks.

Technical Data
Wingspan: 3220mm
Length: 2438mm
Empty Weight: 12.45kg
Maximum Take-off Weight: 28kg
Maximum Speed：35m/s
Cruise Speed: 30m/s
Stalling Speed: 24m/s
Maximum Payload: 8kg
Volume of Fuel Tank:10L
Endurance: 4Hours
Flight Range:  400km
Wind Resistance:固定翼6级
Take off distance: 50 meters
Landingdistance: 70 meters

Recommended Gasoline Power Package (not included) – US$2150.00

DLE60 Engine x 1
Savox 1256 x 7
23×9 High Power Propeller x 1
AT23D Long UAV Pitot Tube x 1
Nav. LED lights x 1 set
Build Kit x 1

Recommended Electrical Power Package (not included) – US$1950.00

Dualsky GA6000.8 180RPM/V Brushless Motor x 1
Dualsky XC13036HV 130A High Voltage ESC x 1
Savox 1256 Servo x 5
24×12 High Power Propeller w/ Prop Cover x 1
AT23D Long UAV Pitot Tube x 1
Nav. LED lights x 1 set
Build Kit x 1

Package Size: 300.0 * 200.0 * 100.0 ( cm )
Gross Weight/Package: 24.0 (kg)

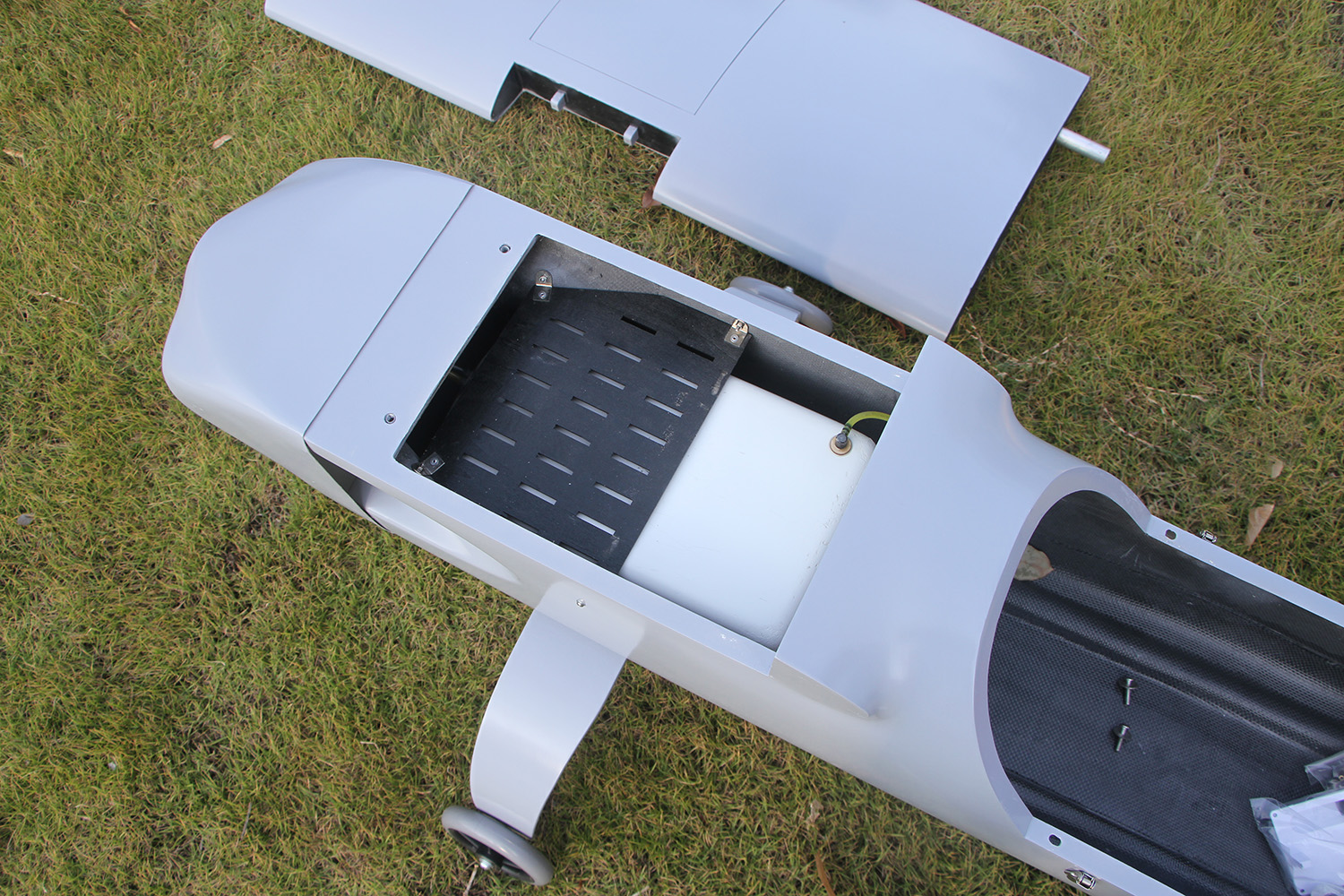

Note: We provide free design services for the internal structure of fuselage. Only the production will be charged according to the structure change.
