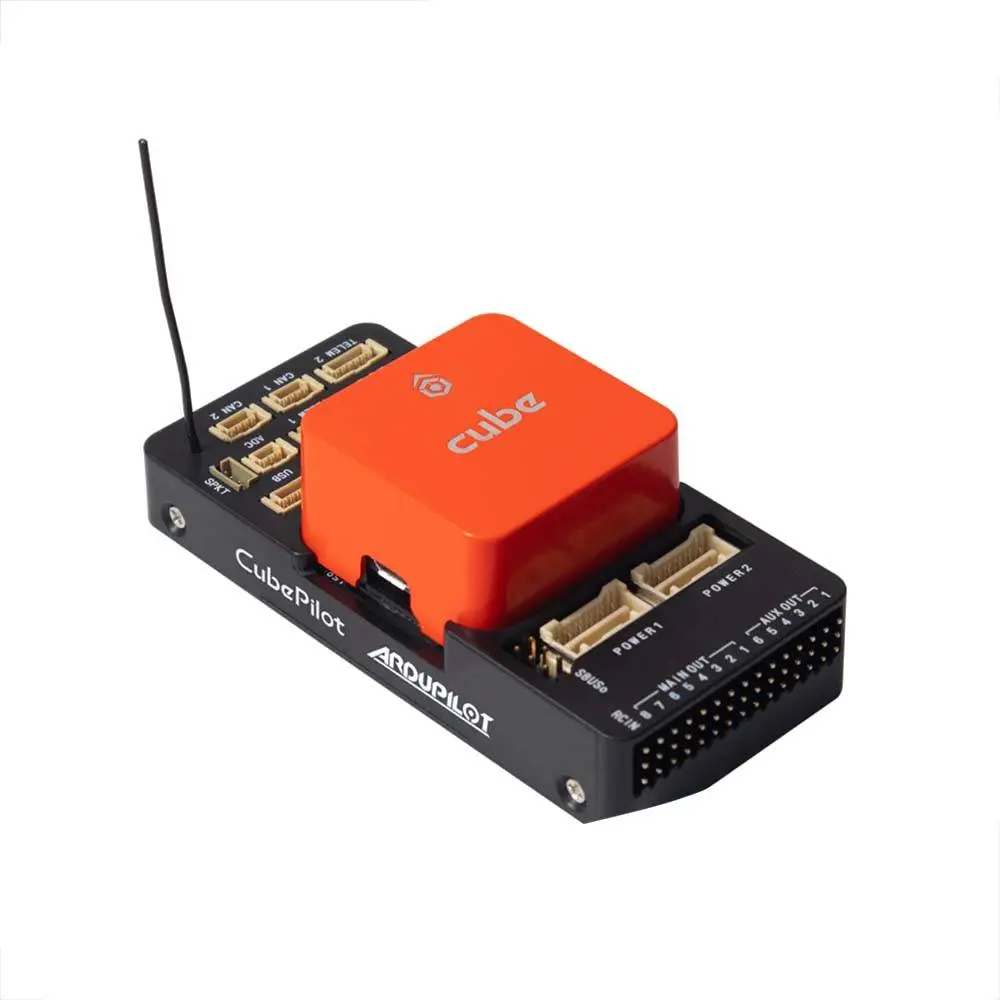

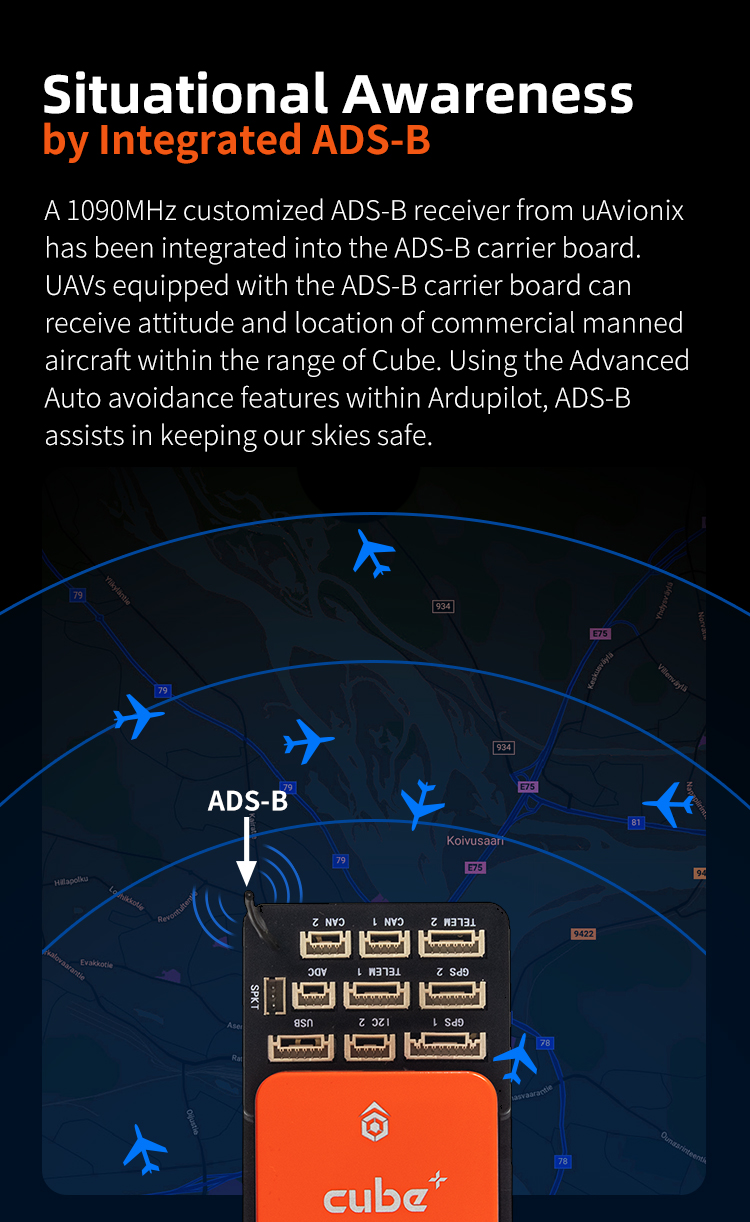

The Pixhawk Cube Orange+ Standard Set (IMU V8) features a high-performance H7 processor and the 1090MHz ADS-B receiver from uAvionix. The Cube Orange+ has upgraded IMUs and the STM32H757 MCU. The autopilot can be set up to automatically avoid aircraft that are detected in an exclusion zone set by the pilot. Previously known as Pixhawk 2.1.

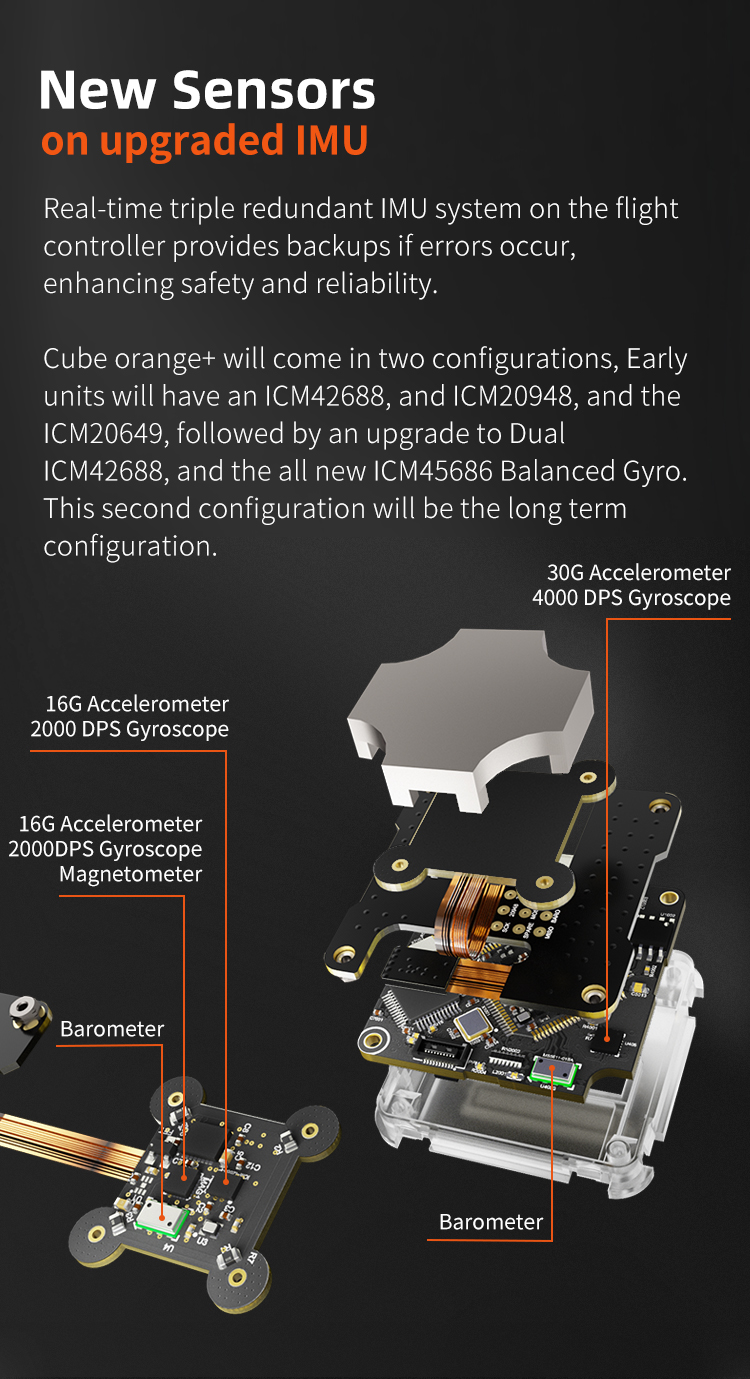

• Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
• Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
• Power-rated output/input power: 14 W
• USB port input voltage/rated input current: 4-5.7 V / 250 mA
• Servo rail input voltage: 3.3 V / 5 V
• Not waterproof. External waterproof protection is needed
• Operation Temperature: -10 °C / 55 °C
• Cube Orange+ Housing Material: CNC Aluminum Alloy
• ADSB Carrier Board Housing Material: ABS Molding

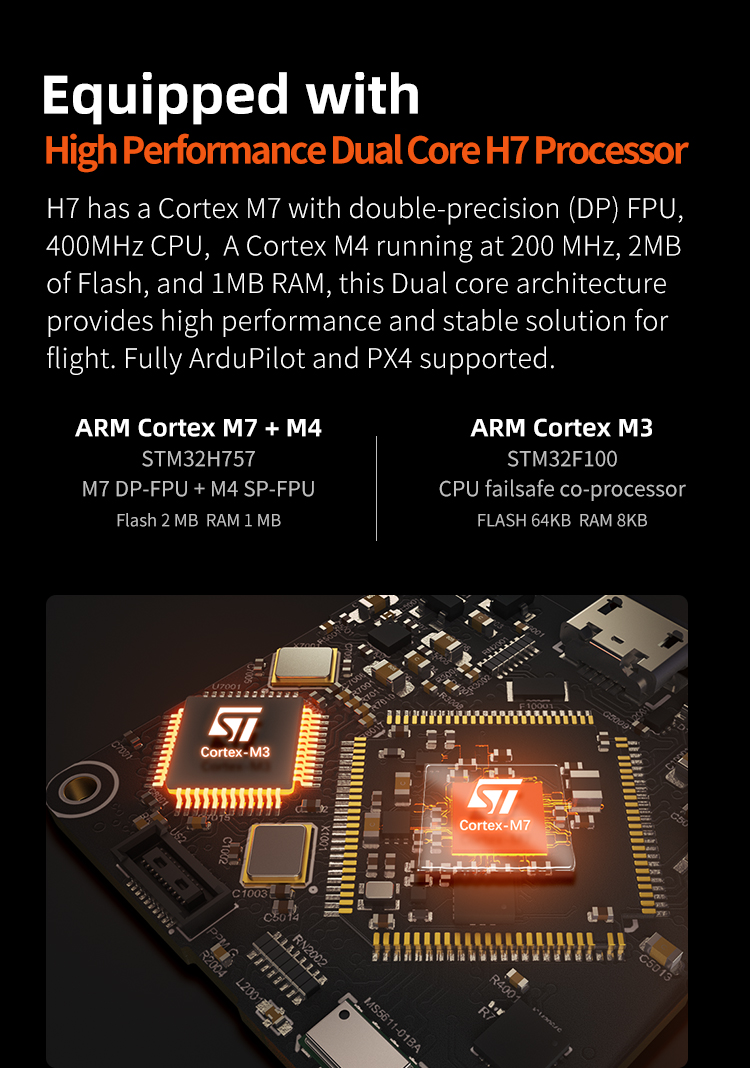

Equipped with high-performance H7 Processor

H7 has double-precision (DP) FPU, 1MB RAM, and 400 MHz CPU processor providing high performance, extremely fast operation, and a stable solution for flight.

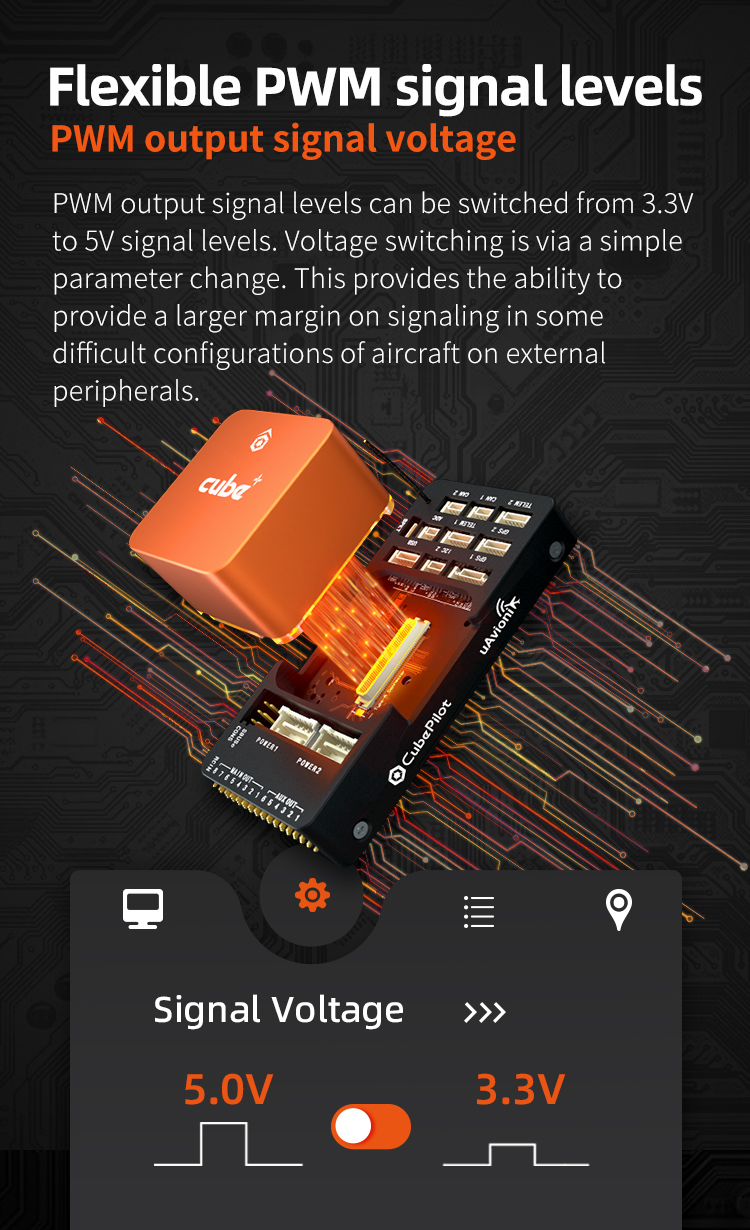

Flexible PWM signal voltage

PWM output supports switching between 3.3 and 5 V signal levels. Voltage switching can be done by ground control station software. This provides better compatibility with external peripherals.
